| ◇Fireproof ALUMINIUM COMPOSITE PANEL |
|
| |
| Inquiry |
Product Available
Total thickness |
4mm |
Aluminum thickness |
0.5mm 0.4mm |
Width |
1220mm,1250mm (standard width)
1000mm,1500mm,1550mm (non standard width) |
Length |
up to 6000mm |
Dimensional Tolerances |
Thickness |
±0.02 mm |
Width |
-0 / +2 mm |
Length |
1000 - 4000 mm |
-0 / +4 mm |
Length |
4001 - 6000 mm |
-0 / +6 mm |
Grade |
A2 grade & B1 grade |
Note:
1) PVDF Paint or Polyester paint.
2) Other specifications available, according to customers' requirements
3) Various colors available, according to customers' requirements
4) High impact resistance and good plasticity
5) Efficiently lightened burden for walls
6) Strengthened impact resistance for constructions
7) Great weather adaptabilities, high intensity, and easy maintenance
8) Perfect sound insulation, thermal resistance and fire retardant capability
9) Easy installation, apparently shortened installation time
10) Quality warranty:
A) 20-year guarantee for PVDF aluminum composite panels
B) 10-year guarantee for polyester aluminum composite panels
11) Package: Strong wooden case
|

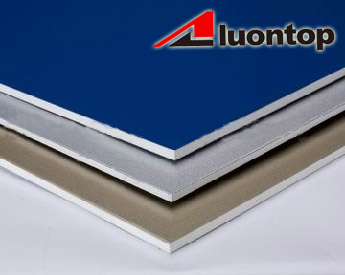

Aluontop A2 FR is an innovative ACP
solution composed of two rigid top-grade
aluminum sheets and a certified non-combustible
inorganic core.Processing under continuous high
temperature and pressure, Aluontop A2
Fire
resistance certified under BS-476 part 6/7,
ASTM-E84 and EN13501-1 standards FR therefore is
a solution for exterior cladding projects that
require high fire resistance and excellent
mechanical strengths.
Extraordinary strength-to-weight
ratio,rigidity,flatness and
formability
Outstanding weatherproof and easy
to clean
Wide range of surface colors and
textures to satisfy creative planning and
designs
Environmentally friendly that can be
recycled
15 years lifespan warranty
Specification:
Surface Face 0.50mm –thick top grade
aluminum sheet
Core 3mm non-combustible m
inorganic core certified under BS-476 part
6/7,
ASTM-E84 and EN13501-1
standards
Backside face: 0.50mm-thick top
grade sheet
Dimesion: T * W*
L 4*1220*2440MM
Customization Width
1250/1500mm
Length
3200/4050mm (Upon request)
Standard
Color: 45 kinds
Surface Enhancement:
Standard Solid, Metallic Color, Embossed,
Brushed, FEVE, DreamX
Custom Color:
Custom Color matching is available
under individual project consulation
Structure:
Feature:
Class : A2 according to the
standard GB8624-2006
Class A2 and class
B Fire-resistance ACP contrast test (30 seconds
after ignition out):
|
class
A2 class
B
no
influence no
flame
flame has generated
Comparison of same rigidity
and weight:
Aluontop A2 FR |
Solid Aluminum |
Comparison of
weight(Aluminum) |
Panel thickness |
Unit weight |
Thickness
(same
rigidity) |
Unit weight |
3mm |
6.20kg/m2 |
2.7mm |
7.30kg/m2 |
85% |
4mm |
8.00kg/m2 |
3.3mm |
8.90kg/m2 |
90% |
6mm |
11.20kg/m2 |
4.5mm |
12.20kg/m2 |
91% |
|
|
|
|
|
|
