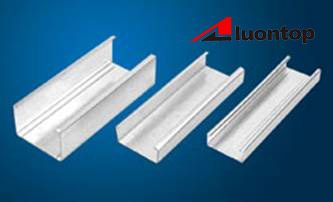

Ceiling channel and drywall channel, made of high-quality Snowflakes Steel, adopting laminose strut channel by Cold-formed Technology, are a kind of metal framework made after several continuous rolling. Ceiling keel and wall channel has light-weight, high-intensity, good-antisepsis and other advantages. They mainly match to paperbacked plasterboard and other goods, also the other plates such as GRC, FT and so on.
Ceiling channels & grid:
Product name |
Product mark |
Specification(mm)A*B*t |
Remarks |
Covering channel |
DC60
DC50 |
60*27*0.60
50*19*0.50 |
Thickness and Length can be provided by customer’s request |
Supporting channel |
DU60
DU50
DU38 |
60*27*1.2
50*15*1.2
38*12*1.0 |
Mark and specification of the wall keel:
Product name |
Product mark |
Specification(mm)A*B*t |
Remarks |
Horizontal channel |
QU |
75*35*0.60
100*35*0.60
|
Thickness and Length can be provided by customer’s request |
Vertical channe |
CU |
75*45*0.60
100*45*0.60
|
|
